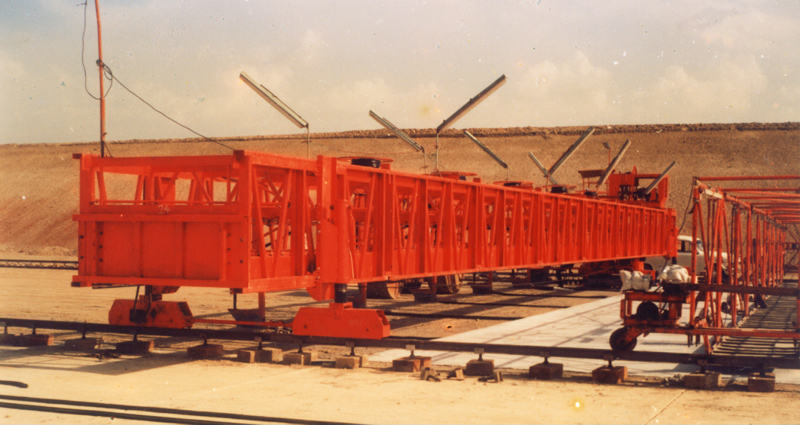

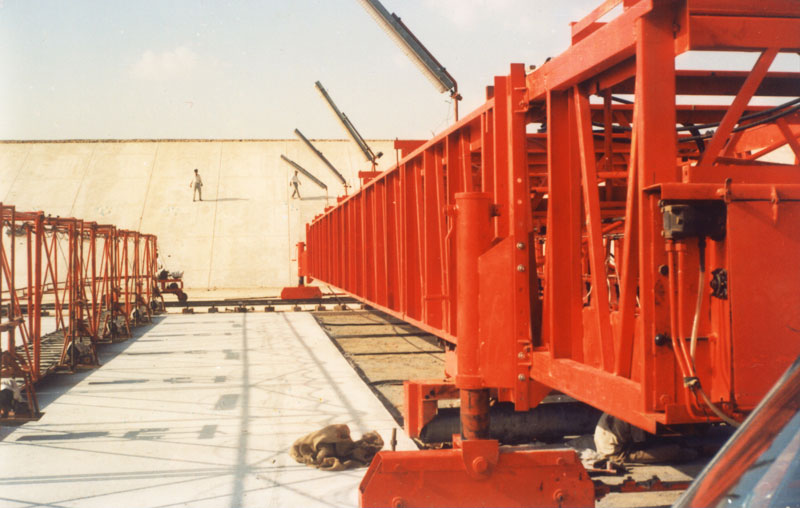

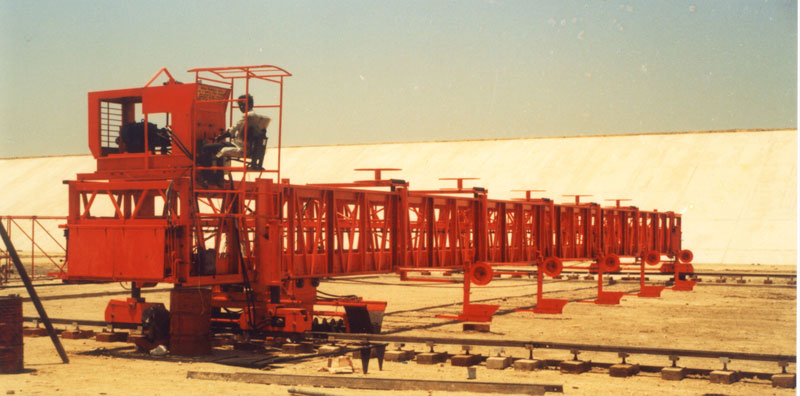

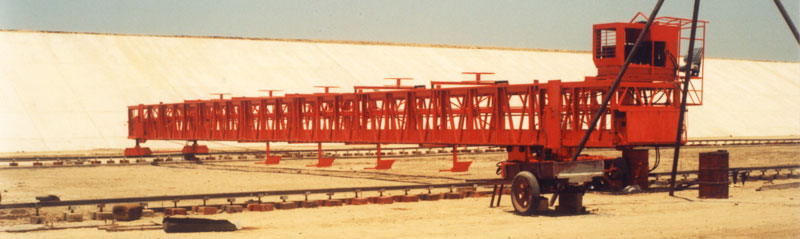

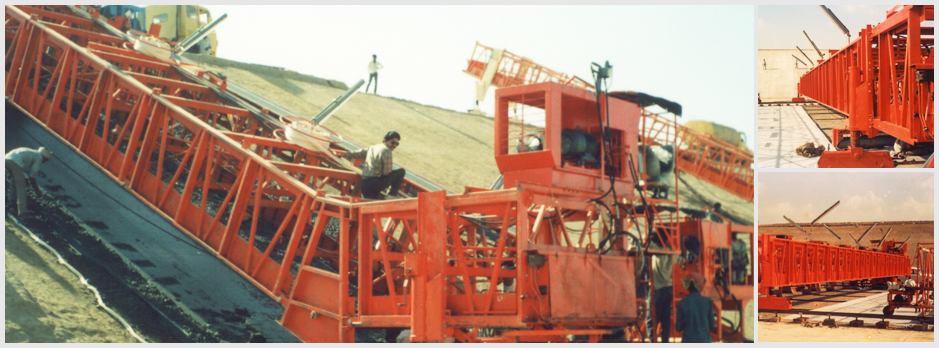

CONCRETE PAVER MACHINE - PVR 1001 PAVER

Heavy duty paver for concrete slabs as Airport, canal etc.
Finishing width from 15 Mts. to 28 Mts. and more
Machine can finish up to 150 Mts. sq/hour
The special Under Carriage consists of a spreader augar, spreads the concrete to level, the finishing Cylinder to compact and finish the concrete to the grade

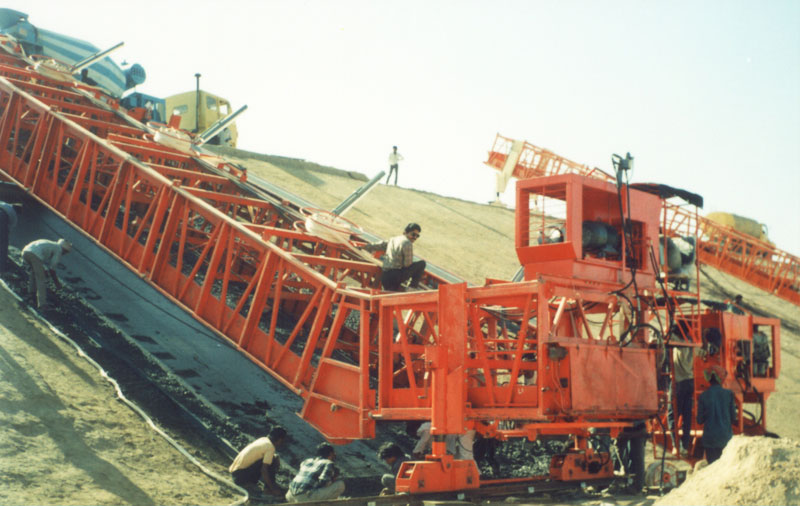

Machine can be used alternatively for bed and slope finishing
Special arrangement is made for PVC INSERTER, which can inserter PVC longitudinally as well as vertically, and also Groove Cutter arrangement is made, whichever you may require

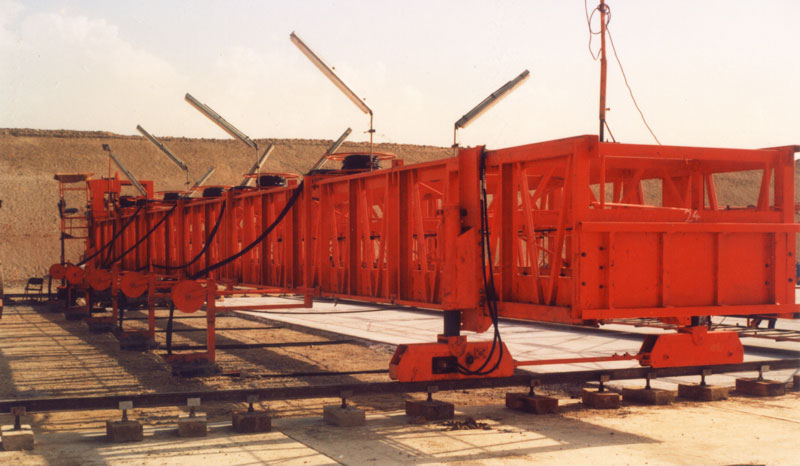

Frame Constuction	Heavy duty Frames are made from welded steel panels in standard length of 3.66 Mts. and 2.5 Mts.
Length Variability	Frames are pin bolted with each other for quick connection. The total length varies accordingly from 15 Mts. to 28 Mts. Greater length can be supplied.
Prime Mover	15 HP 1440 RPM, Electric Motor for Fix console 15 HP 1440 RPM, Electric Motor for Under carriage
Hydraulic Oil Capacity	Fix console: 180 liters. Under carriage: 102 liters.
Vibrating Finishing Assembly	Cylinder: 10 inch diameter, 6 feet long.
Augar	10 inch diameter
Optional Accessaries	Trimmer attachment for slop of canal
